Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire

Brand Name : HHS

Model Number : HHS-900

Certification : CE

Place of Origin : CHINA

MOQ : 1 SET

Price : USD:20000/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50 SETS/MONTH

Delivery Time : 30 working days

Packaging Details : wood package /20-40GP/HC

Type : Tire Machine,Rubber Cutting Machine,continuous type

Power(w) : 90kw~200kw

After-sales service provided : Engineers available to service machinery overseas

Voltage : 380V/50HZ,Customer Request

Name : Waste Tyre Recycling Machine Plant/ Used Tire Shreddere,Open mill tyre recycling reclaimed rubber plant

Capacity : More than 500kg per hour,200-4000kg/h,1500 kg/h

Year : new

Product name : Scrap Tire Recycling Equipment,Rubber Tire Shredder Machine Waste Tyre Recycling Plant,Steel Wire Separation Waste Truck Tyres Recycling Machinery

Function : Tire Powder Recycling Machine,Make Rubber Granule,crumb tires into 30mesh powder

Raw material : waste tire sealing sheet,rubber scraps,truck tire,car tire

End product : rubber granules and powders,rubber granules/rubber powder,tire steel,tire fiber

Usage : Used Tire Recyling,Waste Tyre Dispose

Contact Now

double hook debeading steel and wire from used waste tire

Product Description

Car and Trucks Tire Debeader Used Tyre Debeader LS-1200

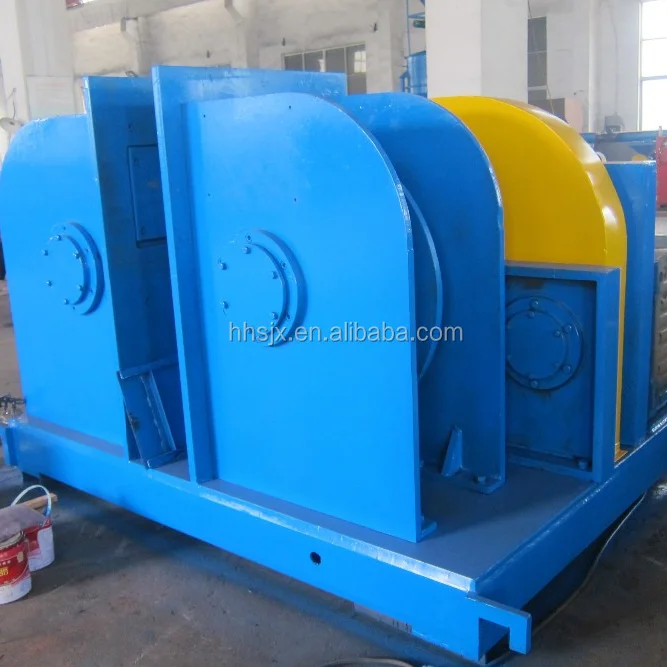

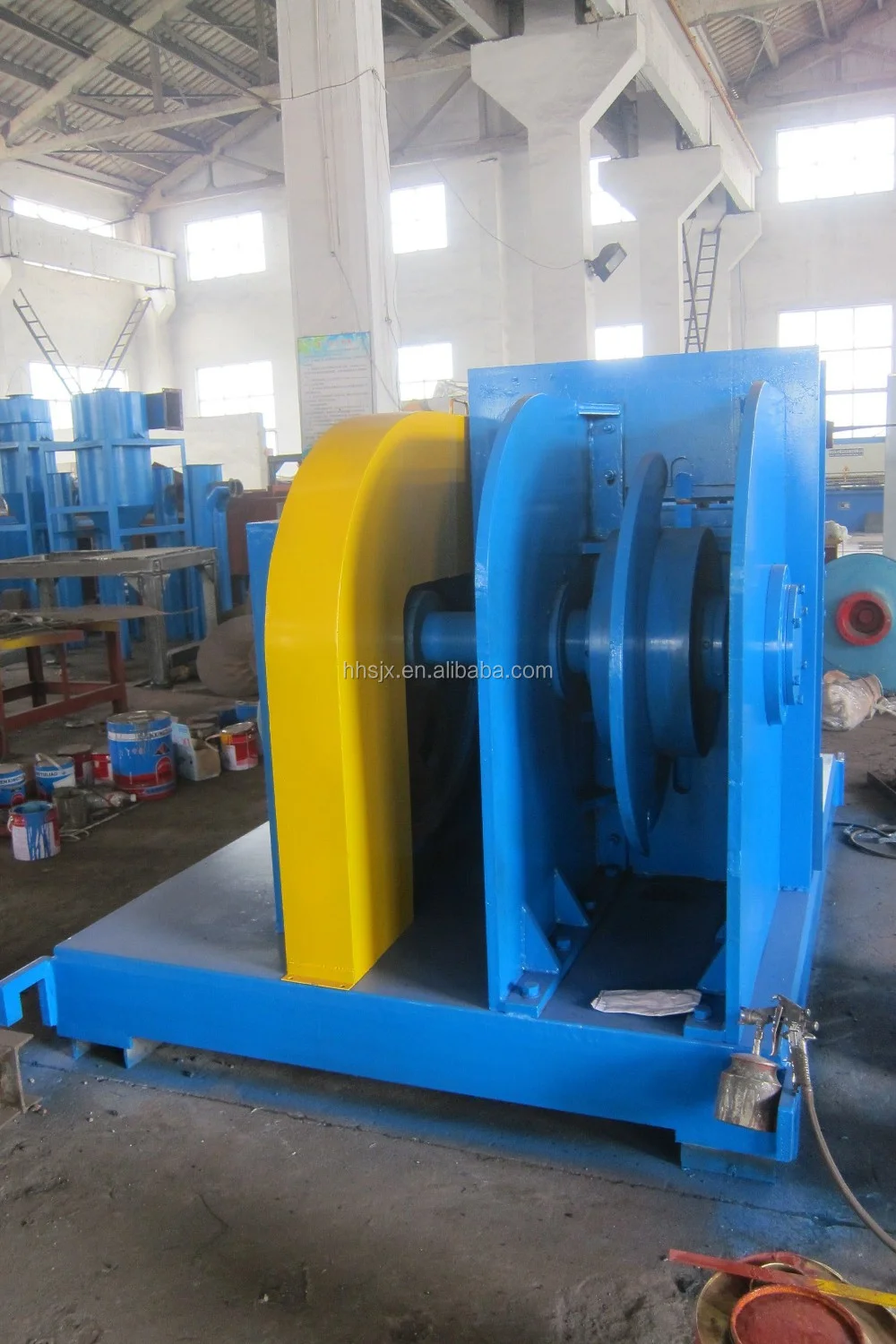

This Double Hoop Wire Drawing Machine is used to seperate the steel wire in the Tire,after this process,the tire can be put into the tire shredder to get 50*50mm rubber blocks.

It is used to pull out bead wires inside two tire sidewalls completely and simultaneously before next cutting and shredding process. It mainly consists of motor, speed reducer, transmission gears, round hooks, cross-hole plate, support boards, pedestal, bearing pedestal, rolling shelf control cabinet.

Advantage:

The machine use integral base pedestal, easy installation and operation, it is the most efficient debeader in the current market;
Adopts twin motor and twin hook design to pull out bead wires at 3 times the speed of the single hook debeader;
Mechanical transmission and round hook design, high efficient and small occupation area;
Circuit protection system, safety protection frame to make the operation easy and safe;
Round hook, cross hole plate and gears are made of materials after special treatment, wearable, heavy-duty, easy miantenance and long life.

Technical Parameter:

Model: LS-1200

Capacity: 60-80 tires/hour

Pulling force(T): 15 Tons x 2 sets

Max.tire diameter:≤1200mm

Motor Power(KW): 15 KW x 2 sets

Operation way: automatic system

Hook structure: dise-type

Hook quantity: 2 sets

Hook material: high hardness alloy steel

Weight: about 6000KG

Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire

******If this machine is over your budget******

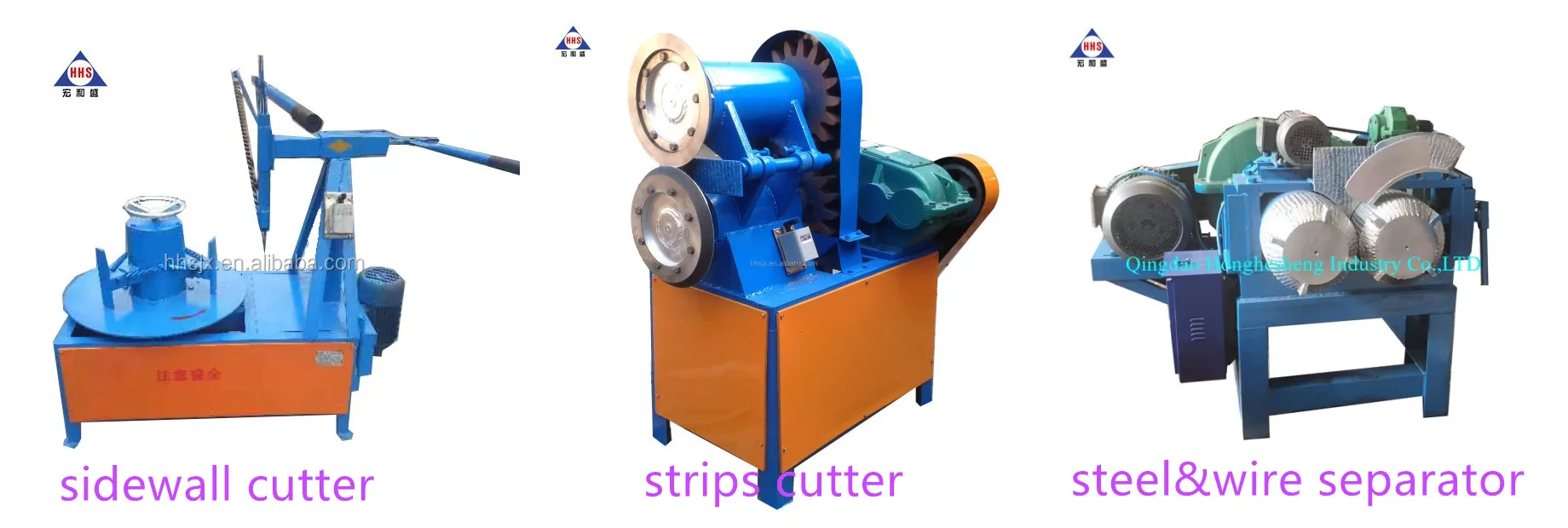

you can try our single hook debeader or sidewall cutter+strips cutter+steel wire separator to save your cost.

Double Hoop Wire Drawing Machine For Debeading Waste Tire Steel And Wire
